• 1-1/4" NPT 316 Stainless Steel Angle Seat Valve 90mm Actuator Steam
1 2

R.W. Martin

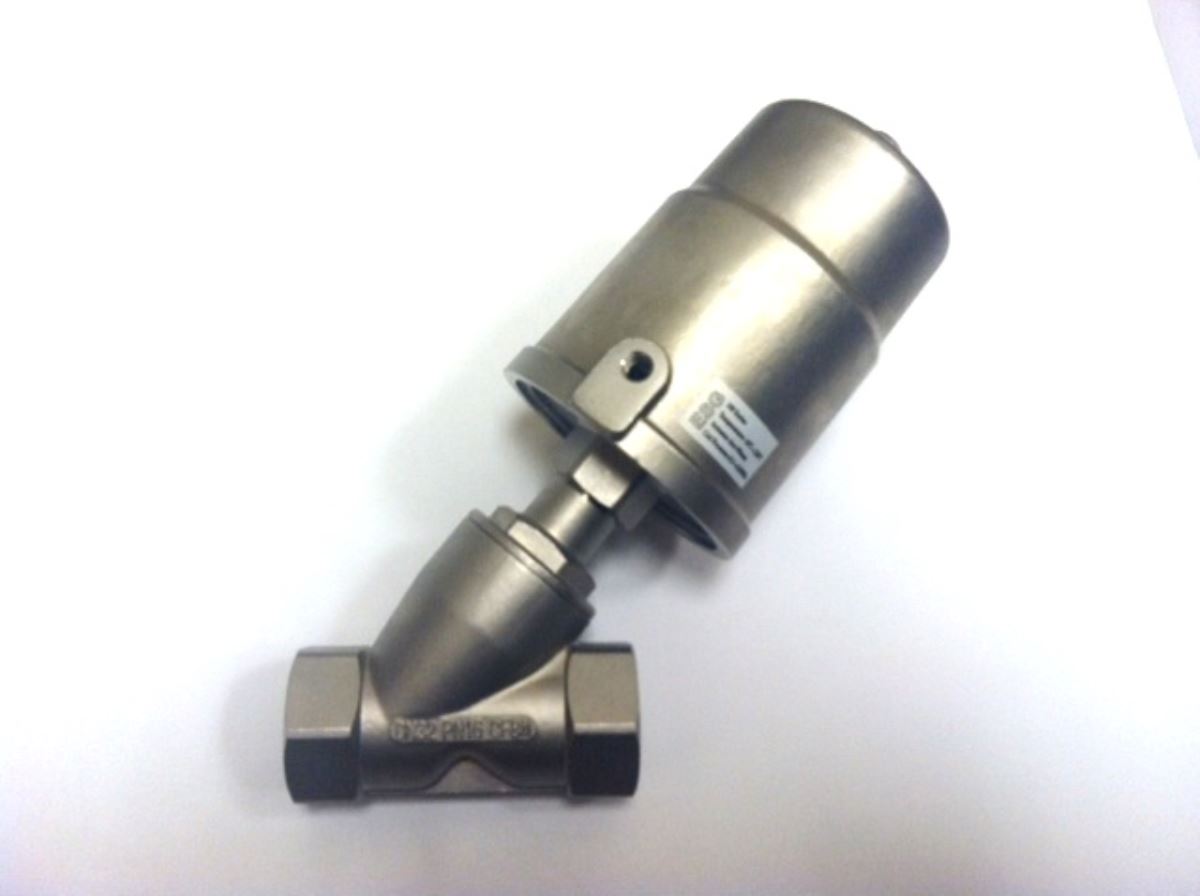

1-1/4" NPT 316 SS Angle Seat Valve, 90mm Actuator, Steam, Part # NP-999-JF90S132YN

SKU: NP-999-JF90S132YN

$319.00 USD
$319.00 USD
Sale Sold out
US domestic shipping included. Expedited Shipping may be available.

IN STOCK NOW — SHIPS IN 24 HOURS

1-1/4" NPT 316 SS Angle Seat Valve, 90mm Actuator, Steam

• Can be converted to electric actuation
• Stainless Steel
• Fluid Pressure: Max 16bar (232psi)
• Control Pressure: 3-8bar (43.5-116psi)
• Control Fluid: clean compressed air or neutral gas
• Actuator Size: 90mm
• Applicable Fluid: Steam
• Fluid Viscosity: Max 600mm2/s
• Fluid Temperature: -10 ° C - +180 ° C
• Ambient Temperature: -10 ° C - +80 ° C
• Control Type: Single acting normally closed
• Connection: Threaded
