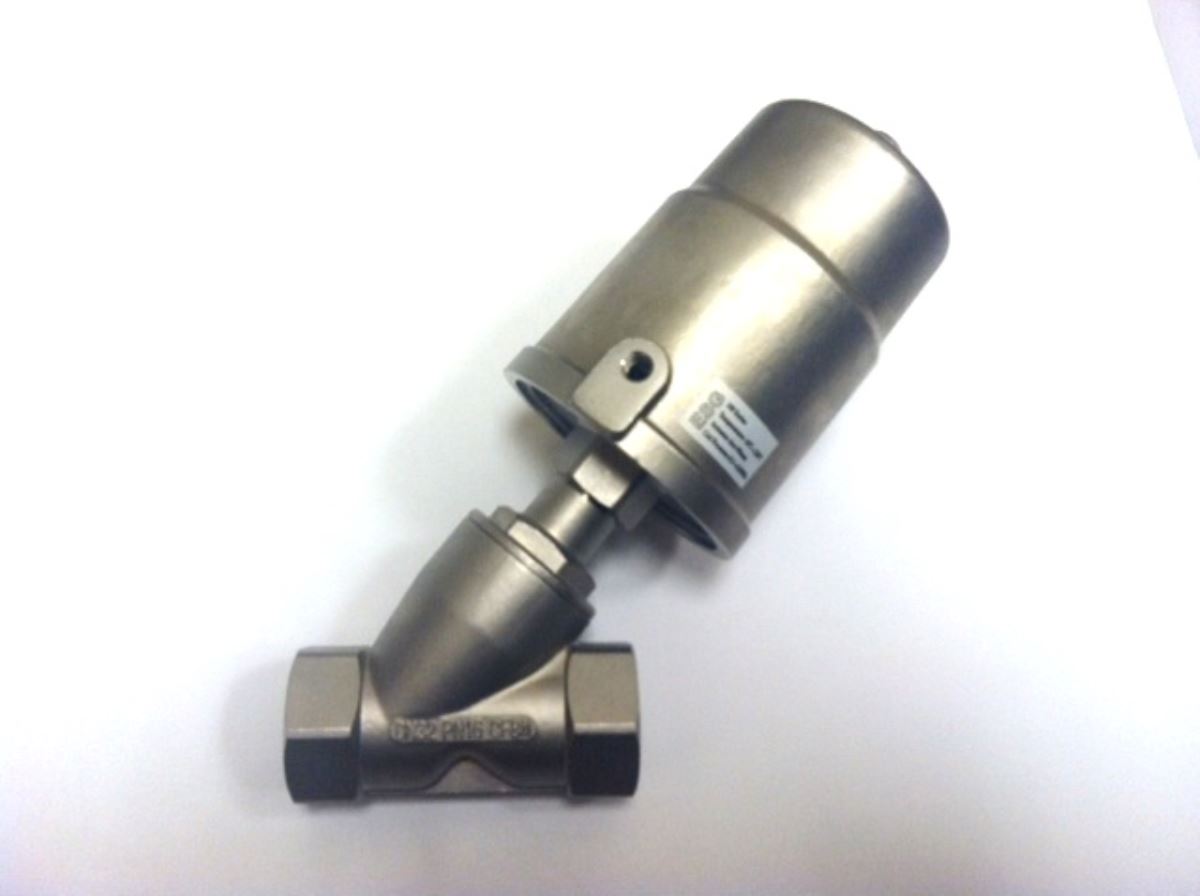

1-1/4" NPT 316 SS Angle Seat Valve, 90mm Actuator, Water, Part # NP-999-JF90S132WN

IN STOCK NOW — SHIPS IN 24 HOURS

1-1/4" NPT 316 SS Angle Seat Valve, 90mm Actuator, Water

Can be converted to electric actuation.

Features:
• Large fiux, low resistance, no water hammer
• Y-type design, increases flow by 30%
• Long life
• Valve stem automatic correction, self-lubricating, maintenance-free
• Stainless Steel cylinder, lasts longer and performs better in harsh environments
• Can be rotated 360°

Technical Parameters:
• Fluid Pressure: Max 16bar (232psi)
• Control Pressure: 3-8bar (43.5-116psi)
• Control Fluid: clean compressed air or neutral gas
• Body Material: CF8M/CF8
• Seals Material: PTFE
• Actuator Material: CF8 (40mm-90mm cylinder)
• Actuator Size: 90mm
• Applicable Fluid: water
• Fluid Viscosity: Max 600mm2/s
• Fluid Temperature: -10 ° C - +180 ° C
• Ambient Temperature: -10 ° C - +80 ° C
• Control Type: single acting normally closed
• Connection: threaded
• Leakage rating: DIN EN 12266 Class A
