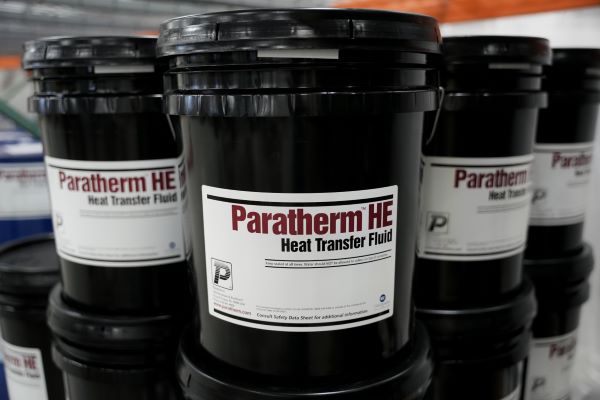

5 Gallon Pail Paratherm HE Heat Transfer Fluid
Couldn't load pickup availability
5 Gallon Paratherm HE Heat Transfer Fluid Overview
Paratherm HE is a highly-refined, mineral-oil-based thermal fluid engineered for reliability and cost-efficiency in non-pressurized, closed-loop heat transfer systems. As an economical workhorse, it is formulated to deliver consistent thermal performance across a broad range, from a minimum startup temperature of 37°F (3°C) up to a maximum operating temperature of 600°F (310°C).
Its extended refining process achieves an exceptional level of purity, stripping out impurities like aromatics and sulfur-bearing compounds. This results in an almost water-white fluid with superior stability and is the foundation of its NSF HT-1 Food Grade certification.
Key Performance Advantages
NSF HT-1 Certified for Incidental Food Contact
Paratherm HE is registered for applications requiring incidental food contact. Its high-purity composition ensures a cleaner, safer system for sensitive processes, particularly in the food and beverage industry.
Extended Fluid Life and Stability
The high degree of refinement removes the impurities that typically catalyze fluid degradation, providing enhanced thermal stability and a longer service life compared to lesser-quality mineral oils.
Superior System Protection
The fluid exhibits a negligible vapor pressure at high operating temperatures. This key characteristic minimizes vapor-air reactions in vented expansion tanks, significantly reducing the formation of sludge and corrosive acids that shorten component life.
Enhanced Safety Characteristics
With a high Flash Point (>410°F/210°C) and a Boiling Point (>700°F/371°C), Paratherm HE offers a substantial safety margin for operators and equipment.
Ideal Applications
Paratherm HE is a versatile solution for a variety of demanding industrial processes, including:
- Food & Beverage Processing (including Meat & Poultry)
- Plastics, Polymers, and Textiles Manufacturing
- Asphalt Processing and Storage
- Engineered Wood and Building Materials
- Industrial Drying Processes
Technical Specifications Summary
| Property | Value |
|---|---|
| Maximum Operating Temperature | 600°F (310°C} |
| Maximum Film Temperature | 650°F (343°C} |
| Minimum Start-up Temperature | 37°F (3°C) |
| Chemical Base | Hydrotreated Heavy Paraffinic Distillate (Mineral Oil) |
| Safety Rating | NSF HT-1 (Incidental Food Contact) |
| Flash Point (Closed Cup) | >410°F (210°C) |
| Vapor Pressure @ 600°F | 1.0 psia (7.0 kPa) |
